ORINOX 110 CAMERAS

If you are able to provide more accurate information than is listed here, please contact us.

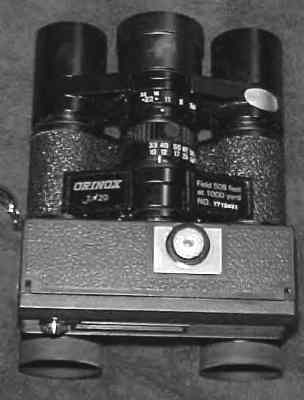

• Binocular Camera

  (1977) Yet another binocular/camera combination.  This one is nearlt identical to the Tasco 7800.  The taking lens is a 127mm (f5.6 - f32) 4-element lens.  It has a single mechanical shutter with speed of 1/125. The binocular focusing was coupled to the camera lens. It has a 7x20 binocular which covers 508 ft wide view at 1,000 ft.  It has a dedicated shooting lens attached to the binocular center focus.  33mm filter thread size.

• Tele-110 MC-1

  (1978) 90mm (f5.6), fixed-focus lens. Mechanical shutter with speed of 1/125. Monocular version of the original.  Focusing was coupled to the camera lens.
