MINOLTA 500mm LENSES

MINOLTA 500mm LENSES

The 500mm appeared in one, two or three versions, depending on how you look at it. It changed very little over time, and you will see the same results, no matter which version you purchase. They are all mirror lenses, so it's a lot smaller and lighter than it would otherwise be. It has a fixed aperture at f8, which provides almost no depth of field. The exposure can be changed by adjusting the shutter speed, and Minolta includes neutral density filters in case you need to reduce the light -- an unlikely occurrence. In fact, you'll usually find yourself wishing you had used a faster film with this lens. On a sunny day, with the subject in full sunlight, you'll be shooting at 1/250 with ISO 100 film.

The competition

There are lots of alternative 500mm f8 CAT lenses, but most suffer from light fall-off and poor resolution. The ones that don't, such as the Spiratone 500mm f8 (actually a Yashica lens) Minitel 77mm (NOT the Minitel-M 72mm version) cost almost as much. Typically, the ones that try to be REALLY small are REALLY the worst. There is no physical way to make a 500mm f8 CAT with anything smaller than a 77mm diameter on the front!!!

MINOLTA 500mm LENSES

LENS FEATURES


COMMENTS

FOCAL LENGTH: 500mm
f-STOPS: 8---
PERIOD: 1977-1981
INSCRIPTION: MINOLTA RF ROKKOR-X 500mm 1:8 LENS MADE IN JAPAN
DESIGN: 6/5
FILTER: 39/77
DIAPHRAGM: fixed
MC: no
MD: no
CLOSE FOCUS: 13.1'
SIZE: 3.9" x 3.3"
WEIGHT: 1lb. 5oz.

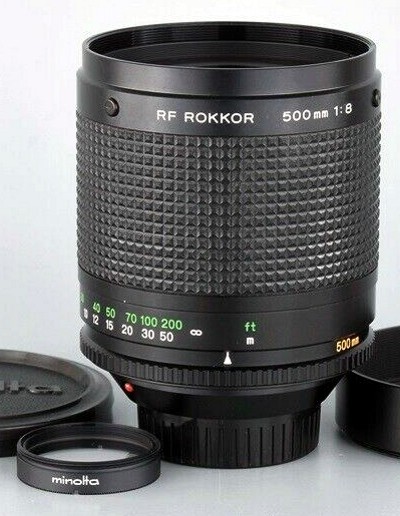

A new lens to the Minolta line-up of SLR lenses in the MD Rokkor-X series. Mirror optics. The original version had a 21mm deep lens shade, but this was later replaced with a 32mm deep lens shade -- at the same time that Minolta changed the order of the lens inscription. It came with an INTEGAL UV filter, as well as Yellow, Orange, Red, and NDX4 39mm filters.

FOCAL LENGTH: 500mm
f-STOPS: 8---
PERIOD: 1981-present
INSCRIPTION: MINOLTA RF 500mm 1:8 JAPAN
DESIGN: 6/5
FILTER: 39/77
DIAPHRAGM: fixed
MC: no
MD: no
CLOSE FOCUS: 13.1'
SIZE: 3.9" x 3.3"
WEIGHT: 1lb. 5oz.

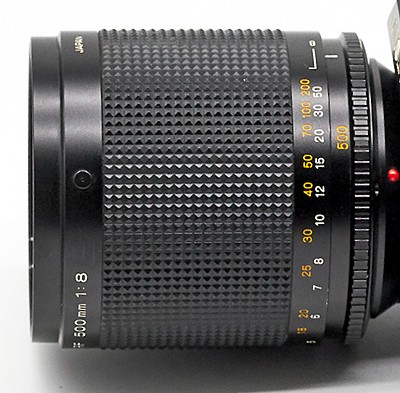

An updated version of the MD Rokkor-X 500mm 8.0 mirror with the typical changes of the MD Minolta series, such as green distance lettering changed to orange. One noticeable change is on the infinity mark. On the earlier model, the lens focuses past the infinity mark -- as it should on longer lenses -- and as seen above. On this model the infinity mark is a short line -- which points to the infinity mark.

**MINOLTA 500mm LENSES**
LENS FEATURES	IMAGE	COMMENTS
FOCAL LENGTH: 500mm f-STOPS: 8--- PERIOD: 1977-1981 INSCRIPTION: MINOLTA RF ROKKOR-X 500mm 1:8 LENS MADE IN JAPAN DESIGN: 6/5 FILTER: 39/77 DIAPHRAGM: fixed MC: no MD: no CLOSE FOCUS: 13.1' SIZE: 3.9" x 3.3" WEIGHT: 1lb. 5oz.		A new lens to the Minolta line-up of SLR lenses in the MD Rokkor-X series. Mirror optics. The original version had a 21mm deep lens shade, but this was later replaced with a 32mm deep lens shade -- at the same time that Minolta changed the order of the lens inscription. It came with an INTEGAL UV filter, as well as Yellow, Orange, Red, and NDX4 39mm filters.
FOCAL LENGTH: 500mm f-STOPS: 8--- PERIOD: 1981-present INSCRIPTION: MINOLTA RF 500mm 1:8 JAPAN DESIGN: 6/5 FILTER: 39/77 DIAPHRAGM: fixed MC: no MD: no CLOSE FOCUS: 13.1' SIZE: 3.9" x 3.3" WEIGHT: 1lb. 5oz.		An updated version of the MD Rokkor-X 500mm 8.0 mirror with the typical changes of the MD Minolta series, such as green distance lettering changed to orange. One noticeable change is on the infinity mark. On the earlier model, the lens focuses past the infinity mark -- as it should on longer lenses -- and as seen above. On this model the infinity mark is a short line -- which points to the infinity mark.
